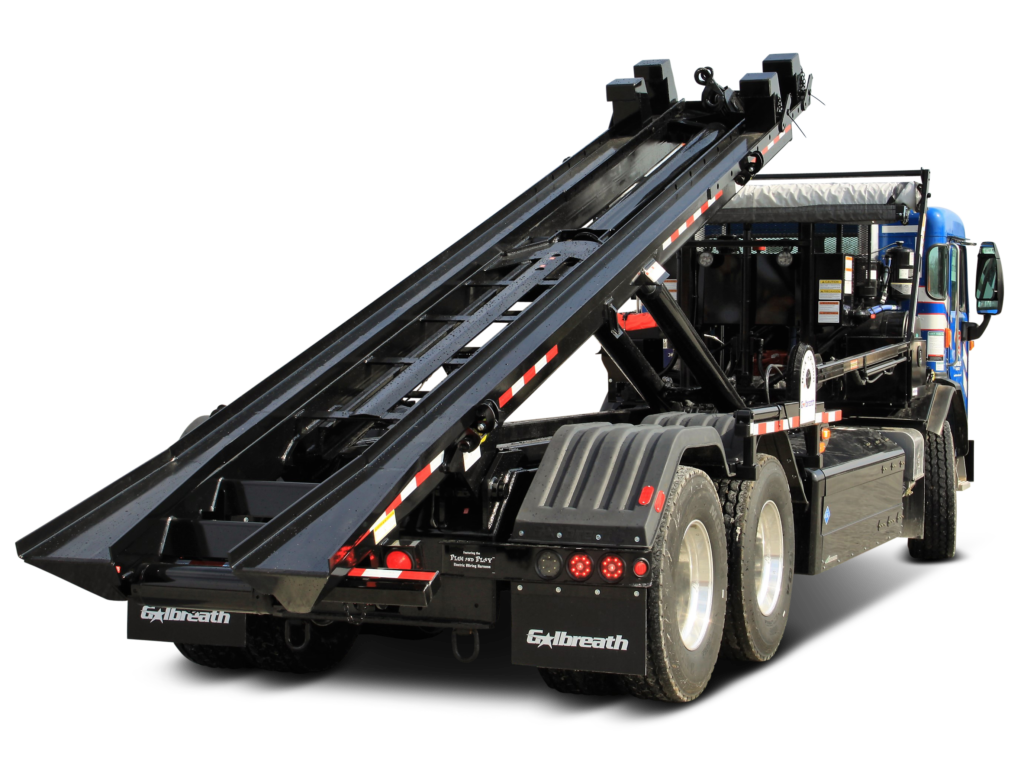

Galbreath Above Frame (AF)

The Galbreath Above Frame (AF) cable hoists are versatile enough to work with any truck chassis, suspensions, exhaust systems, and fuel tanks. The AF hoist is ideal for use with alternative fuel chassis such as CNG and LNG. Plus, the single-cylinder reeving system improves load and unload speeds by up to 25%.

The Above Frame (AF) hoist is ideal for alternative fuel chassis or any application that requires additional space alongside the truck chassis.

  • Dual In-board mounted lift cylinders (all AF/AFX models)
  • Pintle hitch adaptable rear apron
  • Split light bumpers
  • Heavy duty rear hinge
  • Backup alarm
  • Hoist maintenance props
  • Tarper / valve mounting platform
  • Behind the cab oil reservoir
  • Return oil filter / 3 microns
  • Stationary rear hold down
  • Hoist up alarm with signal light
  • Hydraulic tube plumbing in frame
  • LED – DOT stop, turn and side marker lights
  • Air assist auto folding ICC bumper (ICC bumpers are not required on all models)
  • Single cylinder reeving system
  • Mount plates and mounting bolts
  • Hydraulic hose plumbing at control valve
  • Direct mount pump
  • Cable end holder
  • Sealed wiring harness
  • Manual control valve levers (2 up to 7 when applicable)
  • Inside air controls
  • Pioneer® tarping systems
  • Pintle hooks and towing applications
  • Auxiliary hydraulic hookups and wet kits
  • Outside rail skid plates
  • Outboard supported side rollers (standard on 75k lb. models)
  • Toolboxes
  • Fenders
  • Rear window screen protection
  • Lift axles
  • Auxiliary container stops and rear hold downs
  • Various cable ends
  • Safety and additional LED work lights
  • Speed & RPM limiting parameters
  • Scale systems
  • Backup camera systems
  • Pumps and PTO’s
Model Description
AF-OR-174 TANDEM AXLE–60k–174 MODELS–Outside Rollers, Outside Rail
AF-OR-194 TANDEM AXLE–60k–194 MODELS–Outside Rollers, Outside Rail
AFWC-OR-174 TANDEM AXLE–60k–174 MODELS–West Coast–(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD Rail
AFWC-OR-194 TANDEM AXLE–60k–194 MODELS–West Coast–(3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD Rail
AFWC-OX-194 TANDEM AXLE–60k–194 MODELS–West Coast–Extendable Tail/Long Tail 60″, (3) Outside Rollers, Outside Rail, Single Reave Cyl. w/ 34.5″ OD Rail
AF-EX-174 TANDEM AXLE–60k–174 MODELS–Extendable Tail 60″, Outside Rail
AF-EX-194 TANDEM AXLE–60k–194 MODELS–Extendable Tail 60″, Outside Rail
AF-OX-174 TANDEM AXLE–60k–174 MODELS–Extendable Tail/Long Tail 60″, Outside Rail
AF-OX-194 TANDEM AXLE–60k–194 MODELS–Extendable Tail/Long Tail 60″, Outside Rail
AF-IO-174 TANDEM AXLE–60k–174 MODELS–Inside/Outside Rail
AF-IO-194 TANDEM AXLE–60k–194 MODELS–Inside/Outside Rail
AF-IX-174 TANDEM AXLE–60k–174 MODELS–Extendable Tail 60″, Inside/Outside Rail
AF-IX-194 TANDEM AXLE–60k–194 MODELS–Extendable Tail 60″, Inside/Outside Rail
AF-HH-174 TANDEM AXLE–50k–174 MODELS–Dead Lift, Narrow Outside Rail 35″
AF-HH-194 TANDEM AXLE–50k–194 MODELS–Dead Lift, Narrow Outside Rail 35″
AF-EH-174 TANDEM AXLE–50k–174 MODELS–Extendable Tail 60″, Deadlift, Narrow Outside Rail 35″
AF-SI-174 TANDEM AXLE–60k–174 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
AF-SI-186 TANDEM AXLE–60k–186 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
AF-SI-194 TANDEM AXLE–60k–194 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
AFCA-TM-22 TANDEM AXLE–60k–174 MODELS–California Unit–10″ Trough Mount
AFCA-TM-24 TANDEM AXLE–60k–194 MODELS–California Unit–10″ Trough Mount
AFWC-TM-174 TANDEM AXLE–60k–174 MODELS–West Coast–10″ Trough Mount w/ 34.5″ OD Rail
AFCD-OR-22 TANDEM AXLE–50k–174 MODELS–Canada Mount, Outside Rail w/ Dock Push off Option – No Outside Rollers
AFCD-OR-24 TANDEM AXLE–40k–194 MODELS–Canada Mount, Outside Rail w/ Dock Push off Option – No Outside Rollers
AFX-OR-174 TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Outside Rail
AFX-OR-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Outside Rail
AFX-IO-174 TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Inside/Outside Rail
AFX-IO-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Inside/Outside Rail
AFX-IX-174 TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Inside/Outside Rail
AFX-IX-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Inside/Outside Rail
AFX-IOX-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail/Long 55″, Inside/Outside Rail
AFX-EX-174 TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Outside Rail
AFX-EX-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail 60″, Outside Rail
AFX-OX-174 TANDEM AXLE–60k–174 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail/Long Tail 60″, Outside Rail
AFX-OX-194 TANDEM AXLE–60k–194 MODELS–Recessed Vertical Sheave, Extra Top Coverage–Extendable Tail/Long Tail 60″, Outside Rail
AFXC-OR-194 TANDEM AXLE–60k–194 MODELS–Canada Unit-Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Outside Rail
AFXC-IO-174 TANDEM AXLE–60k–174 MODELS–Canada Unit-Recessed Vertical Sheave, Extra Top Coverage–Outside Rollers, Inside/Outside Rail
AF75-OR-194 TANDEM AXLE–75k–194 MODELS–Outside Rollers, Outside Rail
AF75-IO-194 TANDEM AXLE–75k–194 MODELS–Inside/Outside Rail
AF75-EX-194 TANDEM AXLE–75k–194 MODELS–Extendable Tail 60″, Outside Rail
AF75-OR-174 TANDEM AXLE–75k–174 MODELS–Outside Rollers, Outside Rail
AF75-IO-174 TANDEM AXLE–75k–174 MODELS–Inside/Outside Rail
AF75-IX-174 TANDEM AXLE–75k–174 MODELS–Extendable Tail 60″, Inside/Outside Rail
AF75-SI-174 TANDEM AXLE–75k–174 MODELS–Inside / Outside / Deadlift, Narrow Outside Rail 35″
AF75-EX-174 TANDEM AXLE–75k–174 MODELS–Extendable Tail 60″, Outside Rail
AF75-OX-174 TANDEM AXLE–75k–174 MODELS–Extendable Tail/Long Tail 60″, Outside Rail
