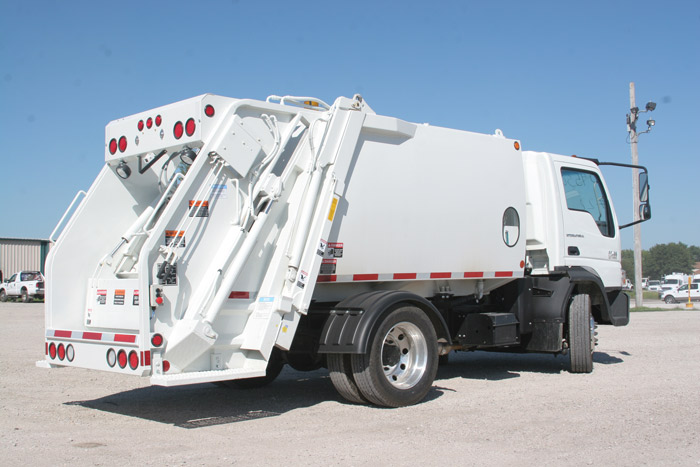

New Way® Diamondback™ Rear Loader Refuse Body
The New Way® Diamondback™ Rear Loader refuse truck’s quality in workmanship and raw materials differentiate it from the competition. This compact, low-profile garbage truck with a low load-sill threshold has a compaction rate of approximately 800 lb. per yd³ on the standard unit and up to approximately 1,000 lbs per yd³ on the HC Model.
When searching for quality, affordability, and maneuverability to service residential and park routes, the Diamondback refuse truck is the answer. It is available in 6 or 8 yd³ capacities and is adaptable to all residential cart tippers.
The Diamondback is lethal to the competition as it comes fully equipped with a range of standard features that are merely options on most other units, including a rear-vision camera and two-year cylinder warranty.
- Semi automatic cycling
- Auto back pack
- Auto-lock tailgate
- Back up alarm
- Upper rear lights
- ICC lights and reflectors
- Sight gauge on oil tank
- Chrome cylinder rods
- Side access door
- Driver alert buzzer
- Tailgate ajar indicator
- Adjustable riding steps rear
- Imron elite productive paint
- Color rear vision camera system
- Special lighting
- PTO & pump
- CNG powered
- Cart tipper
| Model | Body Capacity | Hopper Capacity | Body Width (A)* | Body Height (B) | Body Length (C) | Approx. Body Weight ** | Hopper Opening Width | Loading Sill Height | Hopper Cycle Time |
|---|---|---|---|---|---|---|---|---|---|
| 6 RL | 6 yd³ | 1 yd³ | 75″ | 61″ | 161″ | 5,840 lbs | 54″ | 3.5″ below frame | 8-10 secs. |
| 8 RL | 8 yd³ | 1 yd³ | 75″ | 61″ | 189″ | 6,130 lbs | 54″ | 3.5″ below frame | 8-10 secs. |
| 6 HC RL | 6 yd³ | 1 yd³ | 75″ | 61″ | 161″ | 5,985 lbs | 54″ | 3.5″ below frame | 14-18 secs. |
| 8 HC RL | 8 yd³ | 1 yd³ | 75″ | 61″ | 189″ | 6,275 lbs | 54″ | 3.5″ below frame | 14-18 secs. |
‡ – Length measured depends on options ordered.
* – Approximate Body Weight empty and exclusive of options.
** – Any Chassis sent to Scranton Manufacturing with less than the minimum guideline requirements will not be mounted. (Chassis must be capable of carrying the net weight of the body plus the weight of the refuse collected.)
